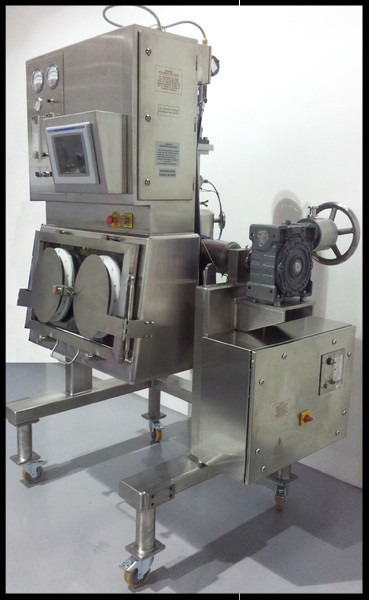

The FD720 Pilot Scale Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.

The Filter Dryer incorporates:

• Alloy C22 Wetted Parts
• 260 litre slurry Capacity
• 80 litre cake capacity
• Electrically Driven variable speed agitator
• Hydraulic Power Pack for  Agitator Raising/Lowering
• Dust Filter
• Heated Agitator
• Solid Discharge System—Single Chamber Glovebo
• Contained Heel Recovery and Sampling
• Double Mechanical Seal and Bellows

The FD630 Pilot Scale Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.

The Filter Dryer incorporates:

• Alloy C22 Wetted Parts
• 200 litre slurry Capacity
• 60 litre cake capacity
• Electrically Driven variable speed agitator      (Raising and lowering)
• Mechanical seal, heated agitator and dust filter
• Fully contained glove box discharge, sampling

Design

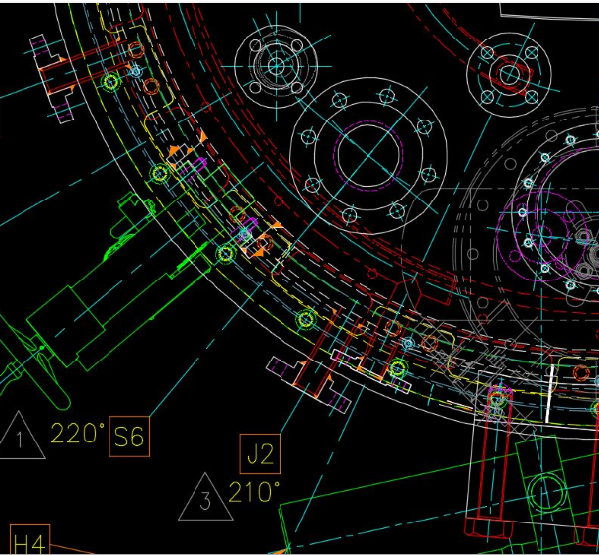

Computer Aided Design (CAD), enables all mechanical design and 3D modelling to be completed in-house with proven designs to major industry standards and codes including

ASME-VIII and PED.

The FD450 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.

The FD450 incorporates:

• Alloy C22 Wetted Parts
• 80 Litre Slurry Capacity
• 32 Litre Cake Capacity
• Electrically Driven Agitator
• Hydraulic Raising/Lowering of Agitator
• Nitrogen Purged Double Mechanical Seal
• Alloy C22 Bellows
• Heated Agitator
• Dust Filter
• Fully Contained Glove box Discharge
• Fully Contained Sampling
• Fully Contained Heel Recovery
• Strip Sight Glass on Side for Measuring Cake Depth
• Vessel Tilt Mechanism
• Fully Mobile
