Current Stock Machines
FILTERLAB FD80
The FilterLab80 has been specifically designed to enable simulations of full scale filter dryers.
The Filter Dryer incorporates:
- Alloy C22 Wetted Parts
- 2 Litre Slurry Capacity Chamber
- 0.5 Litre Cake capacity Chamber
- Electrically Driven Variable Speed Agitator with Auto-Dry Feature
- Hydraulic Raise/Lower of Agitator
- Nitrogen Purged Agitator Seal
- Dust Filter
- Heated Agitator
- Glass Filtrate Receiver
- Mixing Timer for Automated Drying Mode
- 8 Channel Data Logger
- Weigh Scale
- Output Direct to Microsoft Excel

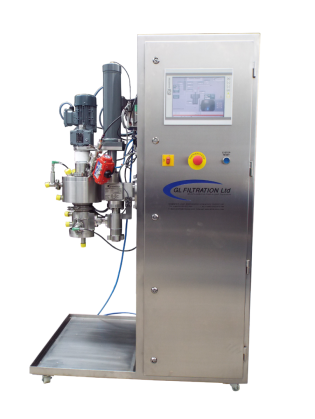

FILTERLAB FD100
The FilterLab100 has been specifically designed to enable simulation of full scale Filter Dryers.
The Filter Dryer package incorporates:
- Alloy C22 Wetted Parts
- 2 Litre Slurry Capacity Chamber
- 0.8 Litre Cake Capacity Chamber
- Electrically Driven Variable Speed Agitator
- Automated Raising/Lowering of Agitator
- Dry Running Mechanical Seal
- Heated Agitator
- Dust Filter
- Full PLC Control , Touch Screen , Control and Data Logging
- Glass Condenser
- Huber Ministat CC1 for Condener Cooling
- Vacumm Pump
FILTERLAB FD150 - 6 units available
The FilterLab150 has been specifically designed to enable simulation of full scale Filter Dryers.
The Filter Dryer package incorporates:
- Alloy C22 Wetted Parts
- 5 Litre Slurry Capacity Chamber
- 2 Litre Cake Capacity Chamber
- Electrically Driven Variable Speed Agitator
- Automated Raising/Lowering of Agitator
- Dry Running Mechanical Seal
- Heated Agitator
- Dust Filter
- Full PLC Control , Touch Screen , Control and Data Logging
FILTER DRYER FD200 - 2 UNITS AVAILABLE
The FD200 KiloLab Scale Filter has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.
The KiloLab incorporates:
- Alloy C22 Wetted Parts
- 10 Litre Slurry Capacity
- 4 Litre Cake Capacity
- Electrically Driven Variable Speed Agitator
- Hydraulic Raising / Lowering of Agitator
- Dry Running Mechanical Seal
- Heated Agitator
- Dust Filter
- Auto-Dry Feature
- Hazardous Area Electrics Available
FILTER DRYER FD260 - 6 UNITS AVAILABLE
The FD260 has been specifically designed to enable simulation of full scale Filter Dryers.
The Filter Dryer package incorporates:
- Alloy C22 Wetted Parts
- 20 Litre Slurry Capacity Chamber
- 6 Litre Cake Capacity Chamber
- Electrically Driven Variable Speed Agitator
- Hydraulic Raising/Lowering of Agitator
- Mechanical Seal
- Heated Agitator
- Dust Filter
- Fully Contained Glove Box Discharge
- Fully Contained Sampling
- Fully Contained Heel Recovery
FILTER DRYER FD350 - 2 UNITS AVAILABLE
The FD350 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.
The Filter Dryer incorporates:
- Stainless Steel Wetted Parts
- 50 Litre slurry Capacity
- 20 Litre Cake Capacity
- Hydraulic Raising/Lowering of Agitator
- Variable Speed agitator
- Dust Filter
- Mechanical Seal
- Fully Contained Glove Box Discharge
- Fully Contained Sampling
- Fully Contained Heel Recovery
FILTER DRYER FD450
The FD450 Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.
The Filter Dryer incorporates;
- 80 Litre Slurry Capacity
- 32 Litre Cake Capacity
- Alloy C22 Wetted Parts
- Electrically Driven Variable Speed Agitator (Hydraulic Raise / Lower of Agitator)
- Nitrogen Purged Double Mechanical Seal and Flexible Alloy C22 Bellows Assembly
- Fully contained Glovebox Discharge and Sampling
- Heated Agitator and Duster Filter
- Choice of Hazardous Area Rating
FILTER DRYER FD720
The FD720 is a Pilot scale filter dryer designed for high standard of temperature, pressure and vacuum control essential for the production of active pharmaceutical ingredients, special chemicals and advanced material.
The Filter Dryer incorporates:
-
Alloy C22 Wetted Parts
- 260 Litre Slurry Capacity
- 80 Litre Cake Capacity
- Electrically Driven Variable Speed Agitator
- Hydraulic Power Pack for Agitator Raising/Lowering
- Dust Filter
- Heated Agitator
- Solid Discharge System - Single Chamber Glovebox
- Contained Heel Recovery and Sampling
- Double Mechanical Seal and Bellows
FILTER DRYER FD1000
The FD1000 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.
The Filter Dryer incorporates:
- Alloy C22 Wetted Parts
- 800 Litre Slurry Capacity
- 240 Litre Cake Capacity
- Electrically Driven Variable Speed Agitator
- Hydraulic Raising/Lowering of Agitator
- Mechanical Seal
- Heated Agitator
- Dust Filter
- Fully Contained Glove Box discharge
- Fully Contained Sampling
- Fully Contained Heel Recovery
FILTER DRYER FD1200 - 2 UNITS AVAILABLE
The FD1200 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.
The Filter Dryer incorporates:
- 1000 Litre Slurry Capacity
- 330 Litre Cake Capacity
- Electrically Driven Variable Speed Agitator.
- Hydraulic Raising/Lowering of Agitator
- Hydraulic Raising/Lowering of Base
- Dust Filter
- Alloy C22 & SS316L Wetted Parts
- Fully Contained Glove Box Discharge
- Contained Heel Recovery and Sampling
FILTER DRYER FD1400
The FD1200 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.
The Filter Dryer incorporates:
- 1500 Litre Slurry Capacity
- 450 Litre Cake Capacity
- Electrically Driven Variable Speed Agitator.
- Hydraulic Raising/Lowering of Agitator
- Hydraulic Raising/Lowering of Base
- Dust Filter
- Alloy C22 Wetted Parts
- Fully Contained Glove Box Discharge
- Contained Heel Recovery and Sampling
