Current Stock Machines

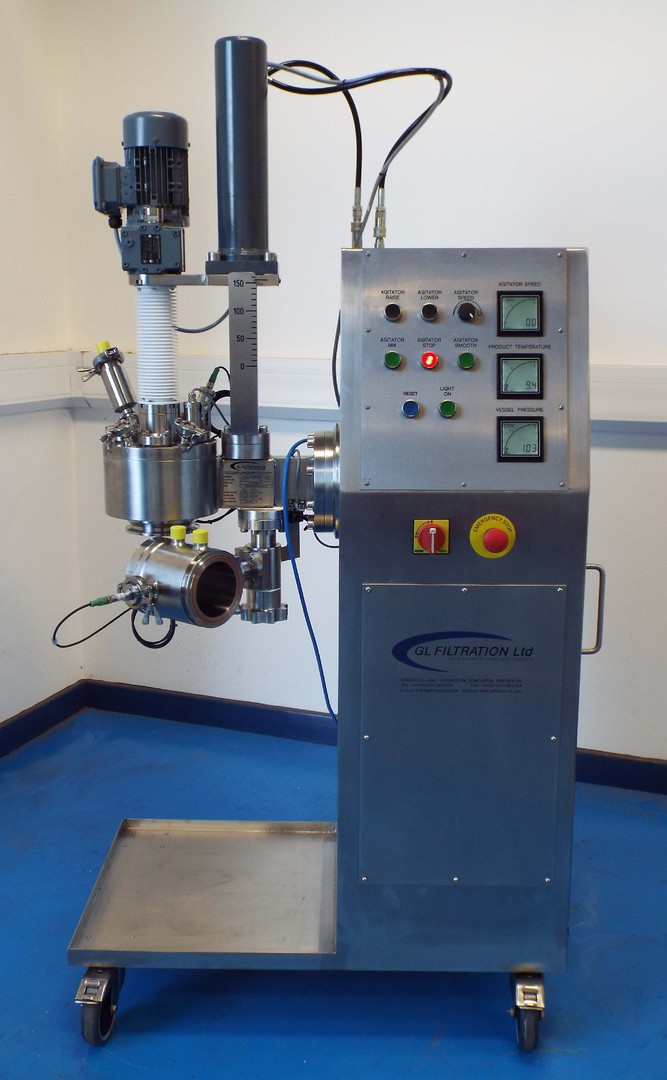

2 Litre Filter Dryer FD80

The FilterLab80 has been specifically designed to enable simulations of full scale filter dryers.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 2 Litre Slurry Capacity Chamber
  • 0.5 Litre Cake capacity Chamber
  • Electrically Driven Variable Speed Agitator with Auto-Dry Feature
  • Hydraulic Raise/Lower of Agitator
  • Nitrogen Purged Agitator Seal
  • Dust Filter
  • Heated Agitator
  • Glass Filtrate Receiver
  • Mixing Timer for Automated Drying Mode
  • 8 Channel Data Logger
  • Weigh Scale
  • Output Direct to Microsoft Excel

FILTERLAB100

The FilterLab100 has been specifically designed to enable simulation of full scale Filter Dryers.



The Filter Dryer package incorporates:

  • Alloy C22 Wetted Parts
  • 2 Litre Slurry Capacity Chamber
  • 1 Litre Cake Capacity Chamber
  • Electrically Driven Variable Speed Agitator
  • Automated Raising/Lowering of Agitator
  • Dry Running Mechanical Seal
  • Heated Agitator
  • Dust Filter
  • Full PLC Control , Touch Screen , Control and Data Logging
  • Glass Condenser
  • Huber Ministat CC1 for Condener Cooling
  • Vacumm Pump

FILTERLAB150

The FilterLab150 has been specifically designed to enable simulation of full scale Filter Dryers.



The Filter Dryer package incorporates:

  • Alloy C22 Wetted Parts
  • 5 Litre Slurry Capacity Chamber
  • 2 Litre Cake Capacity Chamber
  • Electrically Driven Variable Speed Agitator
  • Automated Raising/Lowering of Agitator
  • Dry Running Mechanical Seal
  • Heated Agitator
  • Dust Filter
  • Full PLC Control , Touch Screen , Control and Data Logging

Filter Dryer FD260

The FD260 has been specifically designed to enable simulation of full scale Filter Dryers.



The Filter Dryer package incorporates:

  • Alloy C22 Wetted Parts
  • 20 Litre Slurry Capacity Chamber
  • 6 Litre Cake Capacity Chamber
  • Electrically Driven Variable Speed Agitator
  • Hydraulic Raising/Lowering of Agitator
  • Mechanical Seal
  • Heated Agitator
  • Dust Filter
  • Fully Contained Glove Box Discharge
  • Fully Contained Sampling
  • Fully Contained Heel Recovery

Filter Dryer FD350

The FD350 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.


The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 50 Litre slurry Capacity
  • 20 Litre Cake Capacity
  • Hydraulic Raising/Lowering of Agitator
  • Variable Speed agitator
  • Dust Filter
  • Mechanical Seal
  • Fully Contained Glove Box Discharge
  • Fully Contained Sampling
  • Fully Contained Heel Recovery

Filter Dryer FD450

The FD450 Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.



The Filter Dryer incorporates;

  • Alloy C22 Wetted Parts
  • Electrically Driven Variable Speed Agitator (Hydraulic Raise / Lower of Agitator)
  • Nitrogen Purged Double Mechanical Seal and Flexible Alloy C22 Bellows Assembly
  • Fully contained Glovebox Discharge and Sampling
  • Heated Agitator and Duster Filter
  • Choice of Hazardous  Area Rating
  • 80 Litre Slurry Capacity
  • 32 Litre Cake Capacity

Filter Dryer FD630

The FD630 Pilot Scale Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 200 litre slurry Capacity
  • 60 litre cake capacity
  • Electrically Driven variable speed agitator      (Raising and lowering)
  • Mechanical seal, heated agitator and dust filter
  • Fully contained glove box discharge, sampling

Filter Dryer FD720

The FD720 Pilot Scale Filter dryer has been specifically designed to enable fully contained processing of active pharmaceuticals, yet at the same time maximises product yield.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 260 litre slurry Capacity
  • 80 litre cake capacity
  • Electrically Driven variable speed agitator
  • Hydraulic Power Pack for  Agitator Raising/Lowering
  • Dust Filter
  • Heated Agitator
  • Solid Discharge System—Single Chamber Glovebo
  • Contained Heel Recovery and Sampling
  • Double Mechanical Seal and Bellows



Filter Dryer FD875

The FD875 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 400 Litre Slurry Capacity
  • 120 Litre Cake Capacity
  • Retractable Agitator Assembly
  • Hydraulic Power Pack for Agitator Raising / Lowering
  • Dust Filter
  • Solid Discharge System - Single Chamber Glovebox
  • Contained Heel Recovery and Sampling
  • Double Mechanical Seal and Bellows



Filter Dryer FD1000 Alloy C22

The FD1000 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 800 Litre Slurry Capacity
  • 240 Litre Cake Capacity
  • Electrically Driven Variable Speed Agitator
  • Hydraulic Raising/Lowering of Agitator
  • Mechanical Seal
  • Heated Agitator
  • Dust Filter
  • Fully Contained Glove Box discharge
  • Fully Contained Sampling
  • Fully Contained Heel Recovery



Filter Dryer FD1200

The FD1200 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.



The Filter Dryer incorporates:

  • 1000 Litre Slurry Capacity
  • 330 Litre Cake Capacity
  • Electrically Driven Variable Speed Agitator.
  • Hydraulic Raising/Lowering of Agitator
  • Hydraulic Raising/Lowering of Base
  • Dust Filter
  • Alloy C22 Wetted Parts
  • Fully Contained Glove Box Discharge
  • Contained Heel Recovery and Sampling



Filter Dryer FD1400

The FD1400 Filter Dryer has been specifically designed to enable fully contained processing of Active Pharmaceutical Ingredients (APIs), yet at the same time maximise product yield.



The Filter Dryer incorporates:

  • Alloy C22 Wetted Parts
  • 1500 Litre Slurry Capacity
  • 450 Litre Cake Capacity
  • Electrically Driven Variable Speed Agitator
  • Hydraulic Raising/Lowering of Agitator
  • Hydraulic Raising/Lowering of Base
  • Hydraulic Bayonet Closure
  • Dust Filter
  • Fully Contained Glovebox Discharge + Heel recovery
